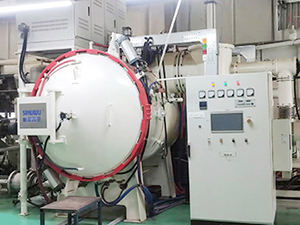

SIC Vacuum Sintering Furnace

Min.Order Quantity: 1 Set/Sets SIC Vacuum Sintering Furnace

Supply Ability: 2 Set/Sets per Month SIC Vacuum Sintering Furnace

Payment Terms: L/C,T/T,

We can offers a complete service, working closely with you right from the initial design and engineering phase to final installation, providing turn-key solutions and technical assistance throughout the whole life cycle of your vacuum furnace.

Email: contact@vacfurnace.com

Technical Parameters
Product Details
Send Inquiry

Model	*Temperature Uniformity Size(WHL)*	Max. Temperature	Ultimate Pressure	Temperature Uniformity	Loading Capacity
RVS-446-S	400400600mm	2400℃	6.7*10-1Pa	±5℃	100Kg
RVS-557-S	500500700mm	2400℃	6.7*10-1Pa	±5℃	200Kg
RVS-669-S	600600900mm	2400℃	6.7*10-1Pa	±5℃	300Kg
RVS-7710-S	7007001000mm	2400℃	6.7*10-1Pa	±5℃	500Kg
RVS-8812-S	8008001200mm	2400℃	6.7*10-1Pa	±10℃	700Kg
RVS-9915-S	9009001500mm	2400℃	6.7*10-1Pa	±10℃	1000Kg
RVS-V0507-S	φ500*700mm	2400℃	6.7*10-1Pa	±5℃	300Kg
RVS-V1010-S	φ1000*1000mm(vertical)	2400℃	6.7*10-1Pa	±5℃	1000Kg
RVS-V1518-S	φ1500*1800mm(vertical)	2400℃	6.7*10-1Pa	±5℃	2000Kg
Remark: The working zone of equipment could be customized base on customer’s production.

The silicon carbide sintering furnace is used for reactive sintering of SiC ceramic products, pressureless sintering, recrystallization sintering, hot isostatic pressing sintering, and can also applied for sintering other ceramic products such as silicon nitride. The maximum temperature of the device up to 2400 ℃, with debinding, dust removal system, sintering system finished at one time.
